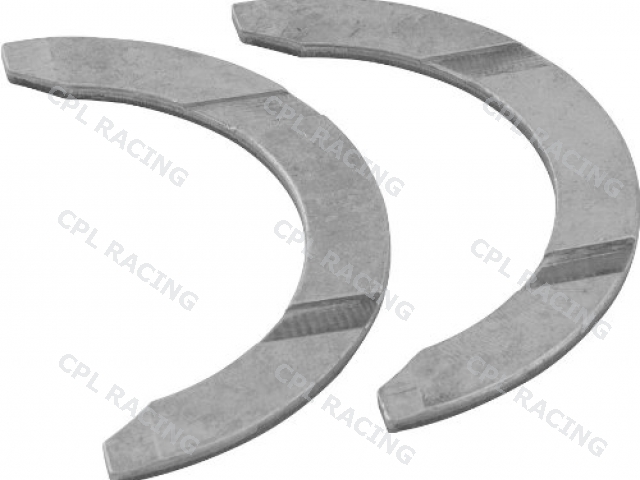

ACL Thrust Washers / Bearings 1T1957-STD

Product Information

ACL Race Series performance engine bearings are recognized as a premier brand throughout the motorsports world. Race Series rod and main bearings are standard components in race engines that have set records and won championships all over the world - from sport compact drift racing to NHRA competitions.

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings feature:

- High strength overlay plate with reduced thickness for improved fatigue properties

- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.

- Increased crush for improved bearing retention

- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.

- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.

- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.

- Tight consistent wall tolerances to help you maintain consistent clearances.

- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.




Please note that if fitting to an H22 these are only suitable for 1998 models onwards
