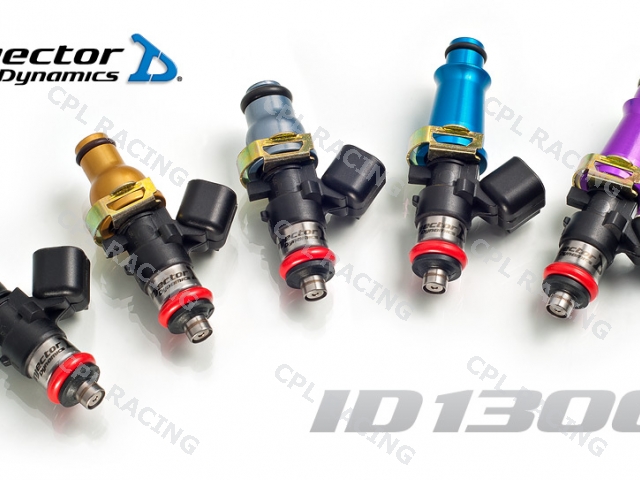

Injector Dynamics 1300cc injectors - Set of 6

Product Information

Injector Dynamics have developed the absolute best fuel injectors available on the market today, and have quickly become the industry standard for tuners and car builders worldwide.

ID fuel injectors are the result of batch testing large quantities of specially modified fuel injectors, and then carefully matching them into sets based on their dynamic flow across the entire pulse-width range. The result is a vastly superior cylinder to cylinder consistency even at very low pulse-widths.

Customers can be sure that in addition to receiving tightly matched injectors, they will be provided with dead time compensation values across the entire pressure and voltage range of the injector. This data will ensure that the compensations in the car’s ECU will work correctly, and the air fuel ratios will remain consistent as atmospheric or voltage conditions change.

The ID1300 was designed with alternative fuels in mind, and is the only performance injector available with all stainless internals. It is compatible with all known fuels, and will stand up to the corrosive nature of alcohol better than any injector on the market.

While the ID1300 was designed with an eye towards ethanol fuelled engines, we have accounted for the occasional need to convert back to gasoline. The ID1300 has a minimum fuel mass compatible with gasoline use, and will provide exceptional idle and cruise behaviour under these conditions.

Product Features: -

- Nominal Flow Rate - 1340cc/min @ 3.0 Bar (43.5 psi) Using Iso Octane at 52 Degrees C (125 Degrees F).

- Maximum Differential Fuel Pressure - 6.0 Bar (87.0 psi).

- Electrical Connector - USCAR.

- In addition to being fully characterized, the low-flow control and tight flow-matching (within +/- 1%) across the pulsewidth range guarantees OEM quality idle and drivability.



Complete technical specification can be found here: -

http://www.injectordynamics.com/ID1300.html


Price is for a set of 6 x 1300cc injectors with clips



We have ID injectors in stock for almost all makes and models of vehicle, please email us with details of your particular vehicle or call us on 01795 668778
